expression.boxplot

Plots a boxplot of the expression of one or more proteins. Samples can be grouped depending on a metadata column. Optionally, the p-values of all the pairwise (2-by-2) comparisons between groups can be added on top of the plot.

expression.boxplot(
  DEprot.object,
  protein.id,
  which.data = "imputed",
  sample.subset = NULL,
  shape.column = NULL,
  group.by.metadata.column = "column.id",
  group.levels = NULL,
  scale.expression = FALSE,
  x.label.angle = 30,
  ncol = NULL,
  free.y = TRUE,
  pairwise.comparisons = FALSE,
  pairwise.test.type = "wilcox.test",
  pairwise.include.ns = TRUE,
  pairwise.p.label = "p.signif",
  pairwise.p.decimals = 2,
  paired.test = FALSE,
  replicate.column = NULL
)

Arguments

DEprot.object

An object of class DEprot or DEprot.analyses.

protein.id

String (or vector of strings) indicating the protein(s) for which plot the expression. The identifiers must correspond to the full row.names of the counts table (equivalent to the prot.id column of the fold change table of DEprot.analyses object). When several proteins are provided the plot is faceted, one panel per protein.

which.data

String indicating which type of counts should be used. One among: 'raw', 'normalized', 'norm', 'imputed', 'randomized', 'random', 'imp'. Default: "imputed".

sample.subset

Character vector indicating a subset of samples to display. The identifiers must correspond to a IDs in the column.id column of the object's metadata. Default: NULL (all samples are shown).

shape.column

String indicating a column from the metadata table. This column will be used as factor for the shape of the points on the boxplot. Default: NULL: no different shapes.

group.by.metadata.column

String indicating a column from the metadata table. This column will be used to define sample groups, and for each group it will be computed a mean of the counts. Default: "column.id" (no groups).

group.levels

Ordered string vector indicating the order to use for the groups. Default: NULL, counts table order will be applied

scale.expression

Logic value indicating whether Z-scores should be computed. With several proteins the Z-score is computed protein by protein, so that the panels stay comparable. Default: FALSE (no scaling).

x.label.angle

Numeric value indicating the rotation angle to use for the x-axis labels. Default: 30.

ncol

Numeric value indicating the number of columns of the facet grid, used only when several proteins are plotted. Default: NULL (automatic).

free.y

Logic value indicating whether each panel should have its own y-axis, used only when several proteins are plotted. Proteins of different abundance are otherwise flattened onto a common scale. Default: TRUE.

pairwise.comparisons

Logical value indicating whether the p-values of all the pairwise (2-by-2) comparisons between the groups should be added on top of the boxplot using ggpubr. When TRUE, a comparison is computed for each possible pair of groups defined by group.by.metadata.column, independently within each protein. Default: FALSE.

pairwise.test.type

String indicating the statistical test to use for the pairwise comparisons. The value is case/format-insensitive: capitalization, dots, spaces and hyphens are ignored (e.g. "wilcox.test", "Wilcoxon", "WILCOX", "mann-whitney" are all equivalent). Supported families: "t.test" (Student's/Welch t-test), "wilcox.test" (Wilcoxon/Mann-Whitney), "anova" and "kruskal.test". Since the comparisons are performed 2-by-2, the two latter are applied through their two-sample equivalents ("anova" -> pooled t-test, "kruskal.test" -> Wilcoxon rank-sum). When the pairwise brackets are displayed, the global p-value shown at the top of the plot is computed with the same test and the same arguments: with two groups the two labels report therefore the same value, while with more groups the multi-sample version of the family is used ("anova" or "kruskal.test"). The Wilcoxon p-values follow the defaults of wilcox.test: exact when both groups have less than 50 values (older R versions require also the absence of ties), normal approximation with continuity correction otherwise. With few replicates the exact p-value has a floor: two groups of 3 samples cannot go below 0.1, even when they do not overlap at all. Names of paired tests are accepted too (e.g. "paired t-test", "signed-rank", "Friedman") and switch on paired.test. Default: "wilcox.test".

pairwise.include.ns

Logical value indicating whether the non-significant comparisons (p > 0.05) should be displayed. If FALSE, only the significant comparisons are shown. Default: TRUE.

pairwise.p.label

String indicating how the pairwise p-values should be displayed (case/format-insensitive). Use "p.signif" (aliases: "stars", "significance", "symbol") to show the significance symbols (ns: p > 0.05, *: p <= 0.05, **: p <= 0.01, ***: p <= 0.001, ****: p <= 0.0001), or "p.value" (aliases: "number", "numeric", "exact") to show the numeric p-value. The symbols are derived from the same p-values of the numeric labels. Default: "p.signif".

pairwise.p.decimals

Numeric value indicating the number of decimals used to approximate the numeric p-values (used only when pairwise.p.label shows the numeric value). Values below 0.1 are rendered in scientific notation with a superscript exponent, e.g. 3.20×10^-2. The actual (real) p-value is always displayed, so the uninformative p < 2.2e-16 is never shown. Default: 2.

paired.test

Logical value indicating whether paired statistical tests should be performed. The samples are matched between groups through the IDs stored in replicate.column, as in diff.analyses, and each comparison uses only the replicates measured in both groups. The t-tests become paired t-tests and the Wilcoxon rank-sum test a Wilcoxon signed-rank test. With more than two groups the global p-value comes from a repeated-measures ANOVA ("t.test", "anova") or from a Friedman test ("wilcox.test", "kruskal.test"), computed on the replicates measured in all the groups. The pairing applies to the global p-value also when pairwise.comparisons = FALSE. Default: FALSE.

replicate.column

String indicating the name of a column from the metadata table in which are stored the replicate IDs used to pair the samples. It is required when paired.test = TRUE, or when pairwise.test.type indicates a paired test. A replicate ID cannot be repeated within a group. Default: NULL.

Value

A boxplot of class ggplot2, faceted by protein when several proteins are provided.

Author

Sebastian Gregoricchio

Examples

# Expression for all samples of protein 'protein.44'
expression.boxplot(DEprot.object = DEprot::test.toolbox$dpo.imp,
                   protein.id = "protein.44",
                   shape.column = "replicate")



# Expression of protein 'protein.44' grouped by condition (combined.id)
expression.boxplot(DEprot.object = DEprot::test.toolbox$dpo.imp,
                   protein.id = "protein.44",
                   group.by.metadata.column = "combined.id")



# Expression of several proteins: one panel per protein
expression.boxplot(DEprot.object = DEprot::test.toolbox$dpo.imp,
                   protein.id = c("protein.44", "protein.45", "protein.46"),
                   group.by.metadata.column = "combined.id",
                   ncol = 3)

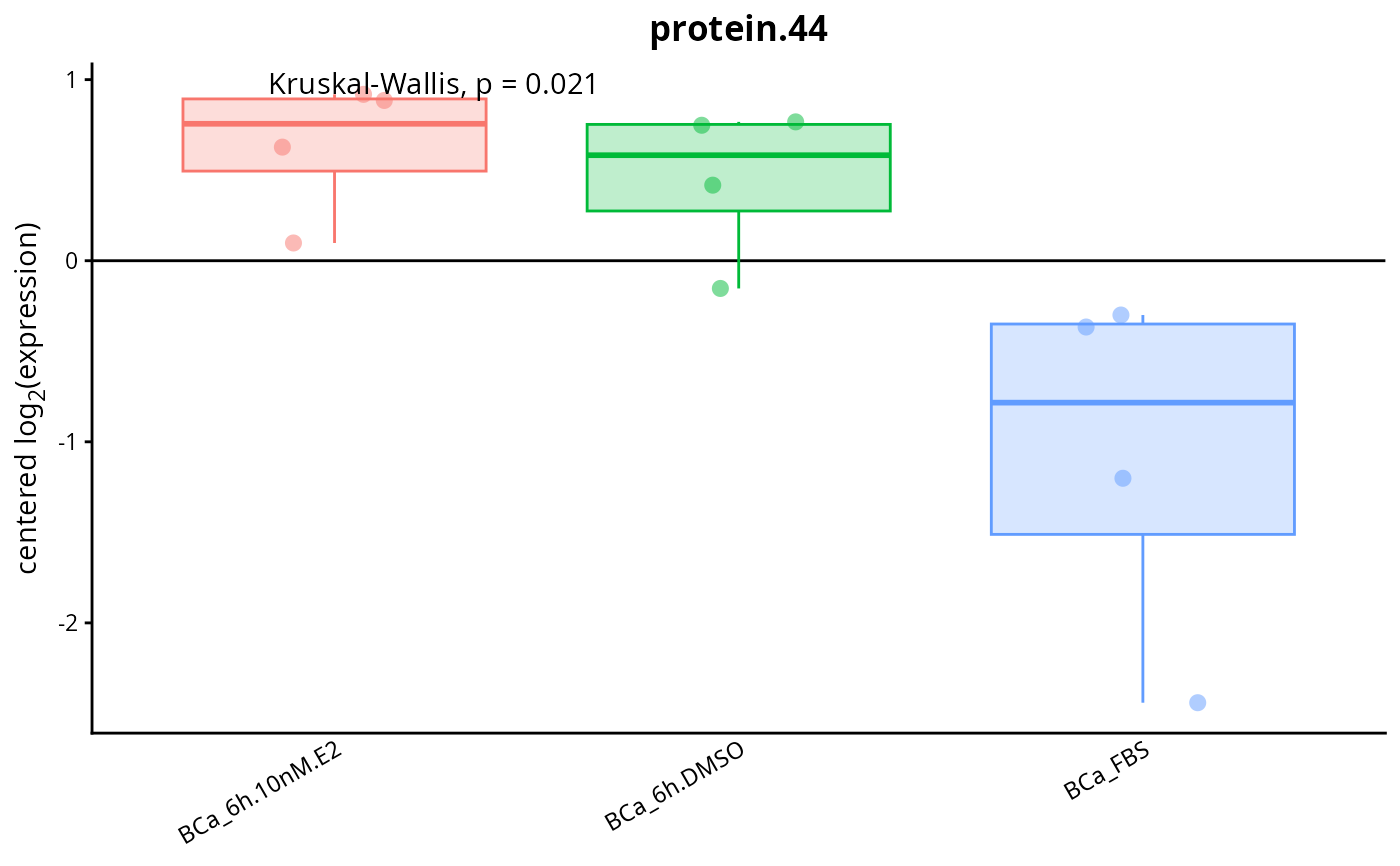

# Expression of protein 'protein.44' grouped by condition (combined.id) and Z-scored
expression.boxplot(DEprot.object = DEprot::test.toolbox$dpo.imp,
                   protein.id = "protein.44",
                   group.by.metadata.column = "combined.id",
                   scale.expression = TRUE)

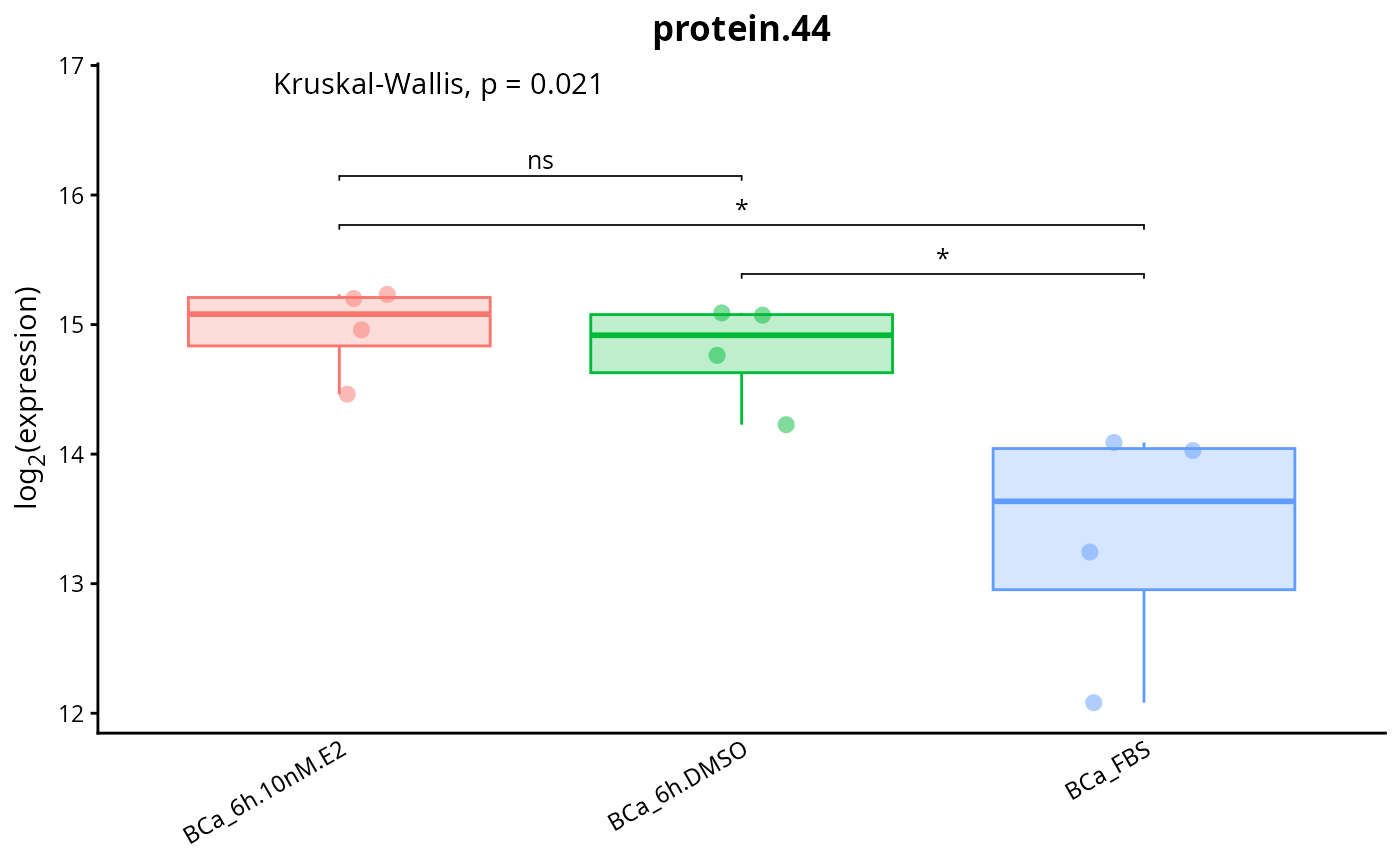

# Pairwise comparisons between conditions (significance symbols, Wilcoxon test)
expression.boxplot(DEprot.object = DEprot::test.toolbox$dpo.imp,
                   protein.id = "protein.44",
                   group.by.metadata.column = "combined.id",
                   pairwise.comparisons = TRUE)

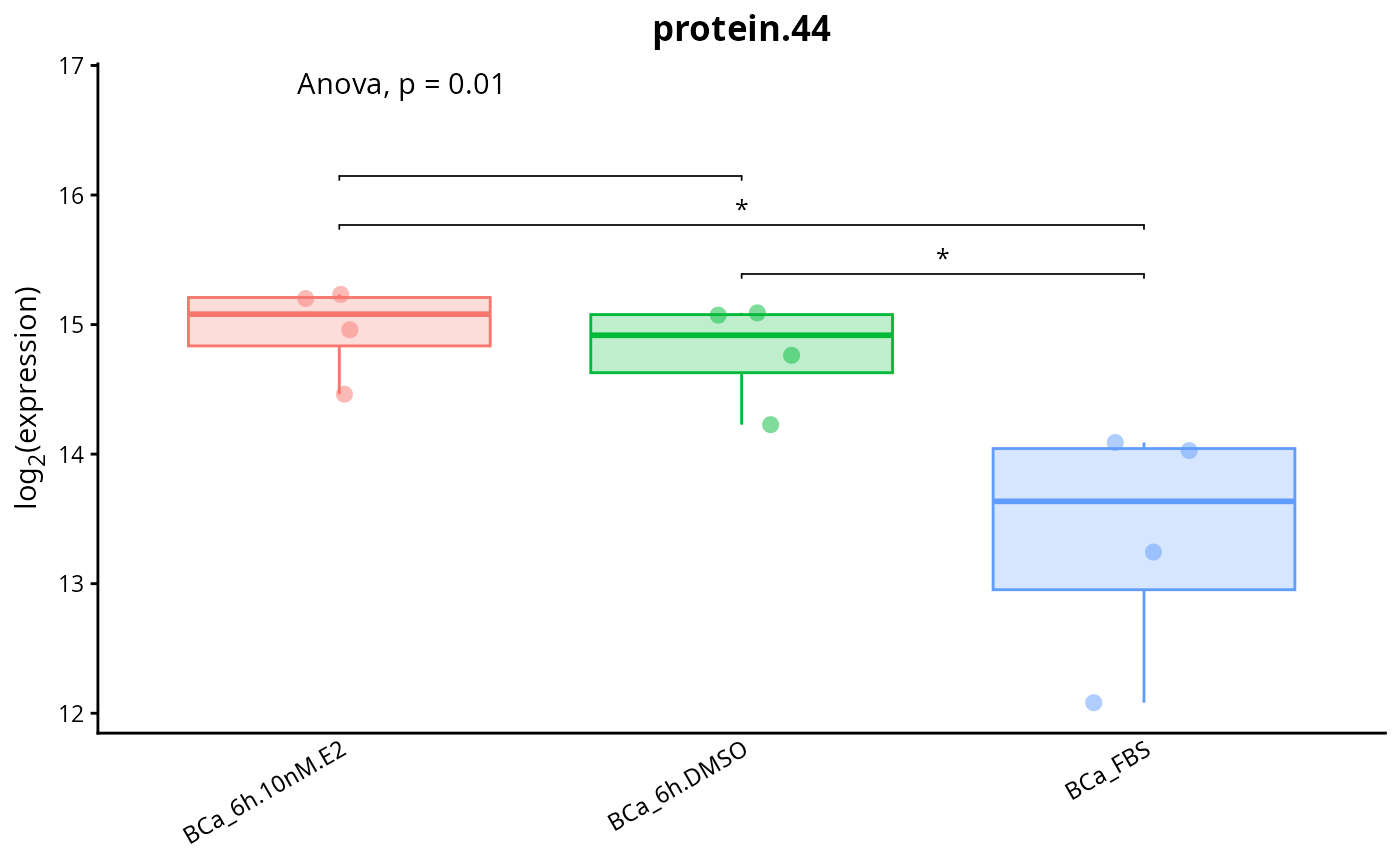

# Pairwise comparisons showing the exact numeric p-value
expression.boxplot(DEprot.object = DEprot::test.toolbox$dpo.imp,
                   protein.id = "protein.44",
                   group.by.metadata.column = "combined.id",
                   pairwise.comparisons = TRUE,
                   pairwise.test.type = "t.test",
                   pairwise.p.label = "stars",
                   pairwise.p.decimals = 3,
                   pairwise.include.ns = FALSE)

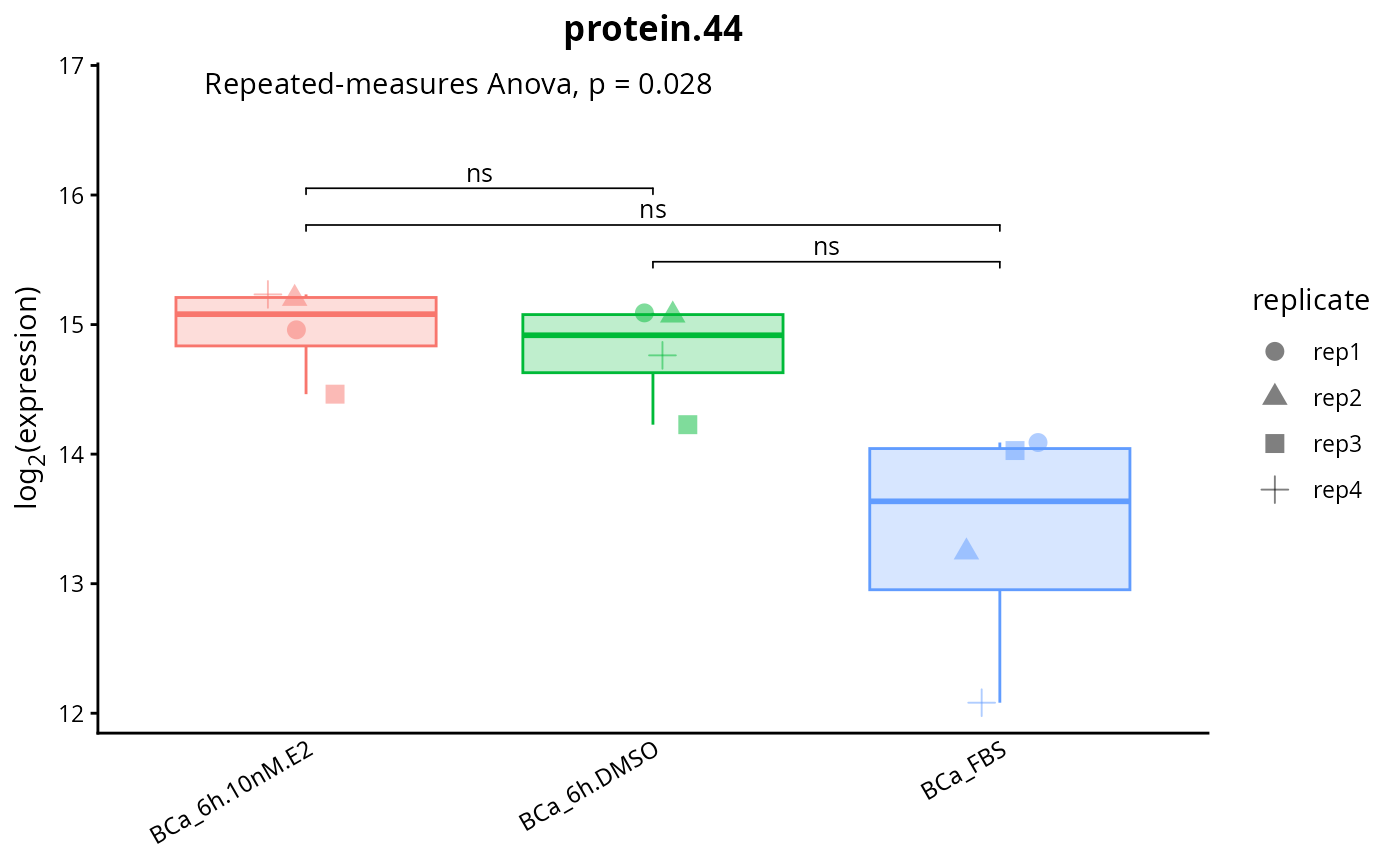

# Paired t-test: the samples of the different conditions are matched through their replicate ID
expression.boxplot(DEprot.object = DEprot::test.toolbox$dpo.imp,
                   protein.id = "protein.44",
                   group.by.metadata.column = "combined.id",
                   shape.column = "replicate",
                   pairwise.comparisons = TRUE,
                   pairwise.test.type = "t.test",
                   paired.test = TRUE,
                   replicate.column = "replicate")
