perform.PCoA

This function performs a Principal Coordinate Analysis (PCoA, also known as classical Multi-Dimensional Scaling) starting from the sample dissimilarities computed by plot.correlation.heatmap. Differently from perform.PCA, which always works on euclidean distances between samples, PCoA allows the use of correlation-based dissimilarities (1 - correlation), which are frequently more robust for LFQ intensities since they emphasize the co-variation profile of the samples rather than the absolute intensity magnitude.

perform.PCoA(
  DEprot.correlation.object,
  DEprot.object = NULL,
  n.axes = NULL,
  correlation.method = NULL,
  distance.transformation = "none",
  correction = "none",
  PCo.x = 2,
  PCo.y = 1,
  color.column = "column.id",
  shape.column = NULL,
  label.column = NULL,
  dot.colors = NULL,
  bar.color = "steelblue",
  line.color = "navyblue",
  verbose = TRUE
)

Arguments

DEprot.correlation.object: An object of class DEprot.correlation, as generated by plot.correlation.heatmap.
DEprot.object: Optional object of class DEprot or DEprot.analyses used to compute the protein-vs-axis projections (axis.loadings). It must be the same object used to generate the DEprot.correlation.object. Default: NULL (no protein projection computed).
n.axes: Integer indicating the number of principal coordinates to compute. It cannot exceed n_samples - 1. Default: NULL (all the computable axes, n_samples - 1).
correlation.method: String indicating the correlation method that was used to generate the DEprot.correlation object ('pearson', 'spearman', 'kendall'). When NULL the value is read from the method slot of the DEprot.correlation object; for objects generated before that slot existed, the method is recovered from the heatmap title and falls back to "unknown". Default: NULL.
distance.transformation: String indicating the transformation to apply to the 1 - correlation dissimilarities. One among: 'none' (dissimilarities used as they are stored in the DEprot.correlation object), 'sqrt' (sqrt(1 - correlation), which is a proper metric and is euclidean-embeddable, hence it removes negative eigenvalues). Default: "none".
correction: String indicating the correction to apply when the dissimilarities are not euclidean-embeddable (negative eigenvalues). One among: 'none', 'cailliez' (additive constant correction, implemented by stats::cmdscale(add = TRUE)), 'lingoes' (sqrt(d^2 + 2c), with c the absolute value of the most negative eigenvalue). Default: "none".
PCo.x: Number indicating which Principal Coordinate (PCo) to display on the x-axis of the stored scatter plot. Default: 2 (PCo2).
PCo.y: Number indicating which Principal Coordinate (PCo) to display on the y-axis of the stored scatter plot. Default: 1 (PCo1).
color.column: String indicating the name of the column in the metadata to use as factor for the dot colors of the stored plots. Default: "column.id" (each sample a color).
shape.column: String indicating the name of the column in the metadata to use as factor for the dot shapes of the stored plots. Default: NULL (all dots).
label.column: String indicating the name of the column in the metadata to use as label of the dots of the stored plots. Default: NULL (no labeling).
dot.colors: Color-vector indicating the colors to use for the points of the stored combined scatter (scatter.plot.123). Default: NULL (automatic colors).
bar.color: String indicating the color to use for the bar fill of the cumulative plot. Default: "steelblue".
line.color: String indicating the color to use for the line and dots of the cumulative curve. Default: "navyblue".
verbose: Logical value indicating whether messages regarding the euclidean-embeddability of the dissimilarities should be printed. Default: TRUE.

Value

A DEprot.PCoA object.

Details

The dissimilarities are rebuilt from the corr.matrix slot of the DEprot.correlation object, so that the requested distance.transformation is always applied consistently; the untransformed dist object originally stored by plot.correlation.heatmap is kept in the distance.input slot for reference.

Negative eigenvalues. 1 - correlation is a valid dissimilarity but not a metric (it does not satisfy the triangle inequality), therefore the resulting eigenvalues can be negative, meaning that the dissimilarities cannot be perfectly embedded in a euclidean space. The function always reports the number and the magnitude of the negative eigenvalues in the euclidean.diagnostics slot, and the proportions of variance are computed using only the positive eigenvalues as denominator, which avoids the nonsensical percentages returned by a naive eig/sum(eig). If the negative eigenvalues are large, use distance.transformation = "sqrt" (recommended, since sqrt(1 - r) is a metric and its double, sqrt(2(1 - r)), is exactly the euclidean distance between standardized profiles) or one of the correction methods.

Axis selection. The importance table includes the broken-stick expectation: axes whose proportion of variance exceeds the corresponding broken-stick value are usually considered non-trivial.

Note on protein loadings. PCoA works on the sample-by-sample dissimilarity matrix and therefore, differently from a PCA, it has no native protein loadings. When a DEprot.object is provided, the projections stored in axis.loadings are computed a posteriori as the correlation between each protein profile and each principal coordinate; they are an interpretative aid and must not be read as PCA rotations.

Author

Sebastian Gregoricchio

Examples

# Compute the sample correlations
correlation <- plot.correlation.heatmap(DEprot.object = DEprot::test.toolbox$dpo.imp,
                                        correlation.method = "spearman")

# Perform the Principal Coordinate Analyses (PCoA)
pcoa <- perform.PCoA(DEprot.correlation.object = correlation,
                     color.column = "condition",
                     shape.column = "replicate")
#> Only 7 of the 11 principal coordinates requested correspond to a positive eigenvalue and could be computed.
#> The dissimilarities are not euclidean-embeddable: 4 negative eigenvalue(s) detected (largest relative magnitude = 0.083).
#>        The negative eigenvalues are non-negligible. Consider using 'distance.transformation = "sqrt"' or 'correction = "cailliez"'/'correction = "lingoes"'.
#>        The proportions of variance are computed using only the positive eigenvalues as denominator.

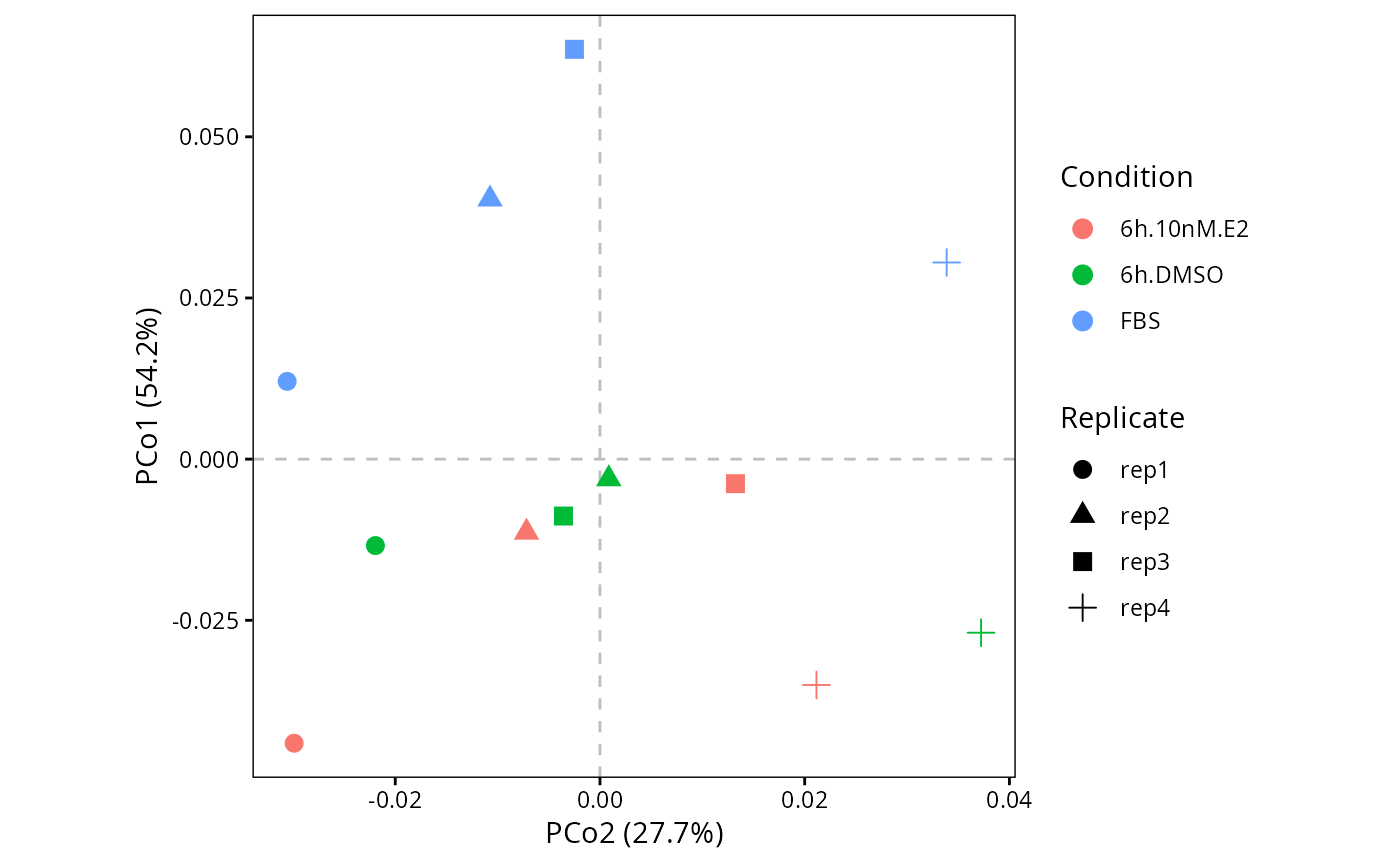

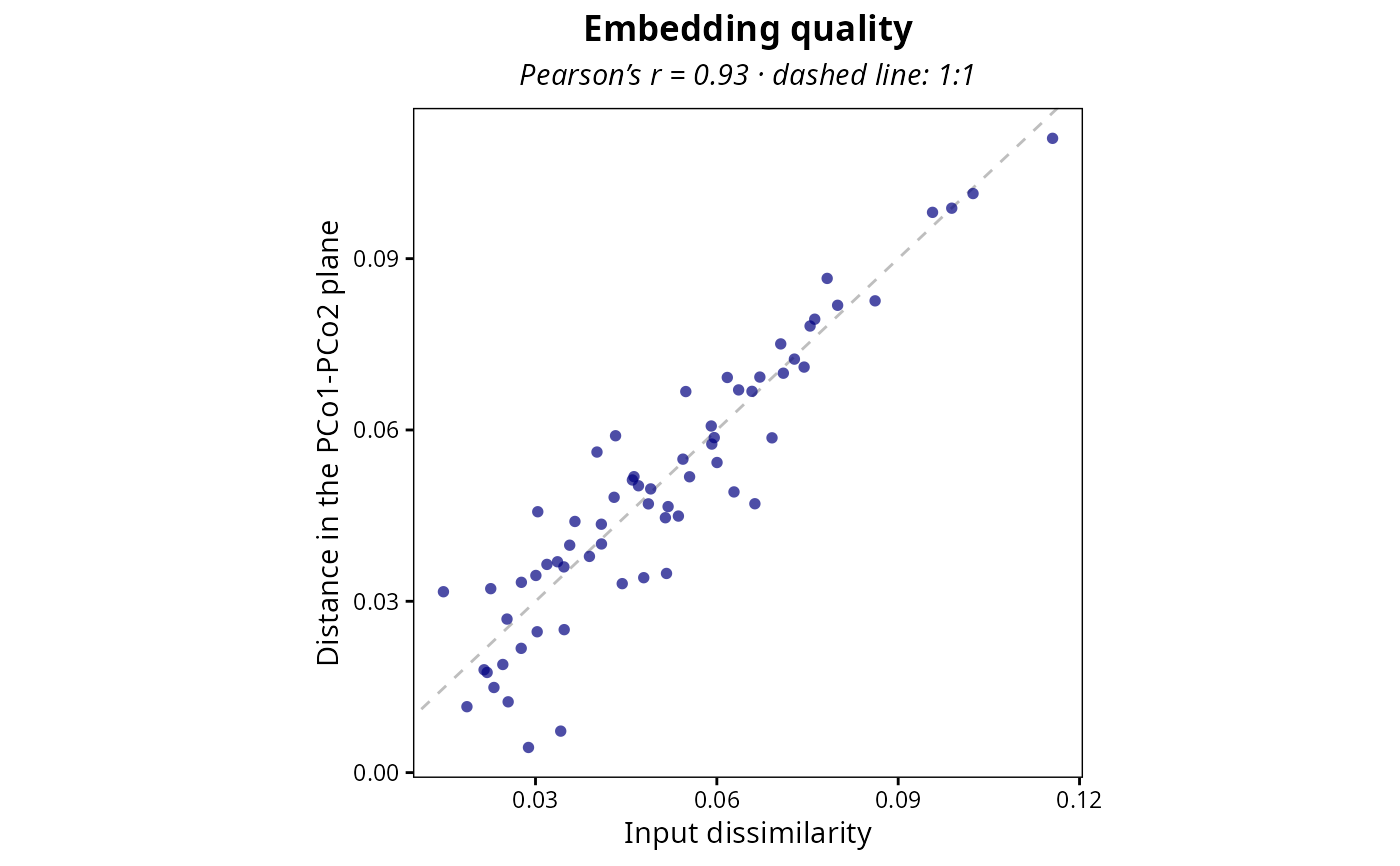

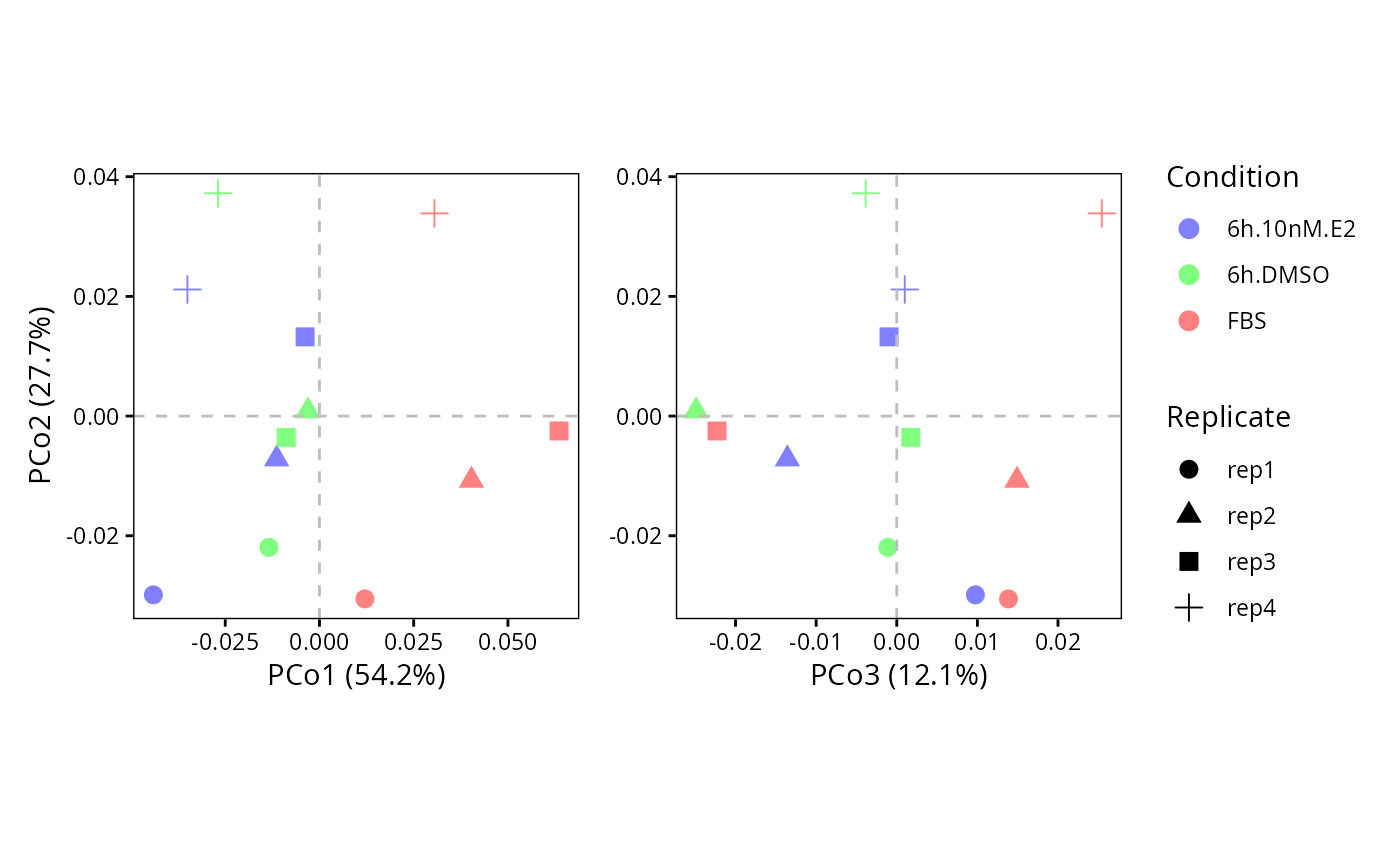

# Show the stored plots
pcoa@scatter.plot

pcoa@scatter.plot.123

pcoa@cumulative.PCo.plot

pcoa@shepard.plot


# Same, but forcing euclidean-embeddable dissimilarities
pcoa.sqrt <- perform.PCoA(DEprot.correlation.object = correlation,
                          distance.transformation = "sqrt",
                          color.column = "condition")
